Fluid Control Equipment Manufacturers

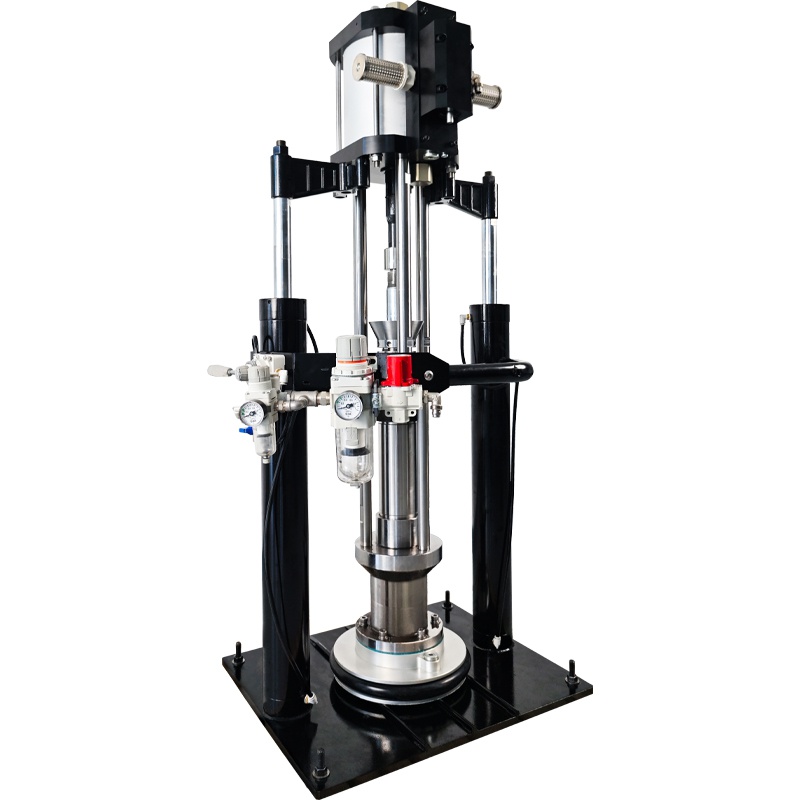

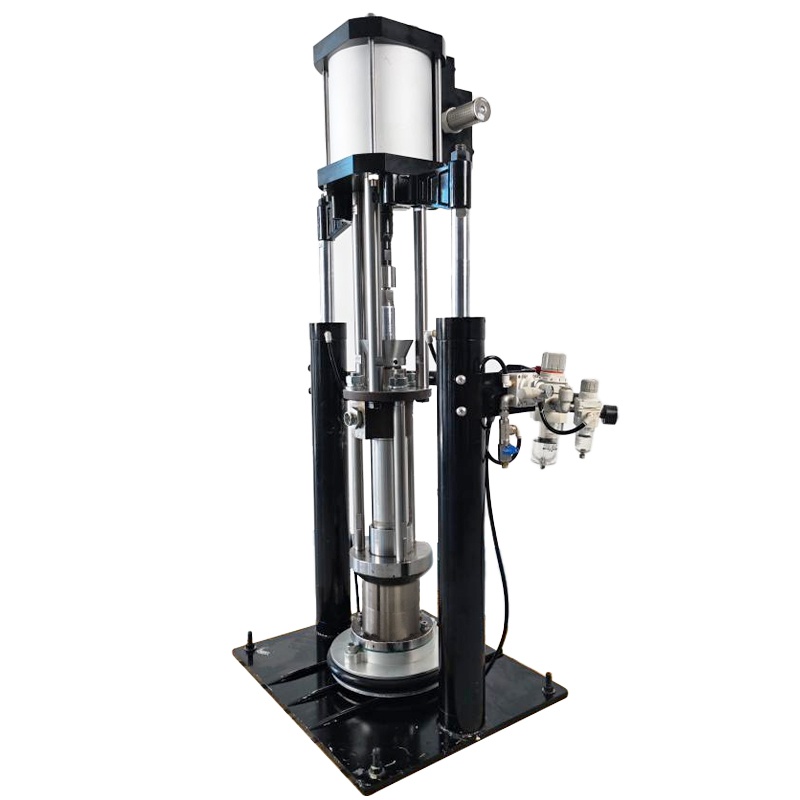

5-Gallon Adhesive Dispensing Pump

The Shanghai Shengpu 5-Gallon Adhesive Supply Pump is a specialized glue dispensing system designed for 5-gallon containers, ideal for industrial applications that require high-volume and continuous adhesive delivery. This pump ensures stable and precise glue transfer from a 5-gallon container to application equipment, making it suitable for adhesives, sealants, and potting materials of various viscosities, including high, medium, and low. Widely used in automotive manufacturing, electronic encapsulation, and construction, this 5-gallon adhesive pump is the preferred choice for industries needing consistent and accurate adhesive supply.

  • Item :

    5-Gallon Adhesive Supply Pump
  • Control and regulation :

    Pneumatic
  • Air compression ratio :

    28:1
  • Intake pressure range :

    0.15-0.6 MPa
  • Applicable viscosity range :

    20,000-1,000,000Cps
  • Maximum air consumption :

    700 L/min-1000 L/min
  • Minimum fluid flow :

    0.3 L/min-2 L/min
  • Maximum fluid flow :

    6 L/min
  • Displacement per cycle :

    110cc-320cc
  • Only part of model parameters are listed :

    Please contact us for more model options

Main Features:

  • Large Capacity Design:  This adhesive supply pump can hold up to 5 gallons (approximately 19 liters) of adhesive, making it ideal for long-term continuous production. It reduces the frequency of adhesive refills, thereby enhancing production efficiency.
  • Stable Output:  Equipped with a precision pumping system, it ensures a stable adhesive supply. Whether for high or low-viscosity materials, it provides consistent and uniform adhesive output, meeting the strict demands of industrial applications.
  • High Precision Control:  Featuring an advanced pressure control system, it allows for precise adhesive pressure adjustment based on actual needs, ensuring accuracy during coating or dispensing processes and preventing material waste.
  • Compatibility with Multiple Materials:  Suitable for various adhesives, sealants, and coating materials, including polyurethane adhesives, silicone, and epoxy resins, this pump supports a wide range of viscosity requirements.



Product Highlights:

  • Strong durability and easy maintenance
  • Stable transmission for continuous feed of adhesive
  • Low-speed creep function for precise control
  • Optional polymer and ceramic materials for enhanced wear resistance
